L&L e28S-3 Pottery Kiln

$4,051.00

Insulation: 3″ K23 Firebrick
Sections: Two 9″ high sections
Inside Dimensions: 28.00″ Diameter x 18.00″ High (71.12 cm Diameter x 45.72 cm High)
Outside Dimensions: 35.00″ Wide x 46.00″ Deep x 65.00″ High (88.9 cm Wide x 116.84 cm Deep x 165.1 cm High)
Weight: 350 lbs (159 kg)

e28S-3 Spec Sheet

e28S-3 Technical Drawing

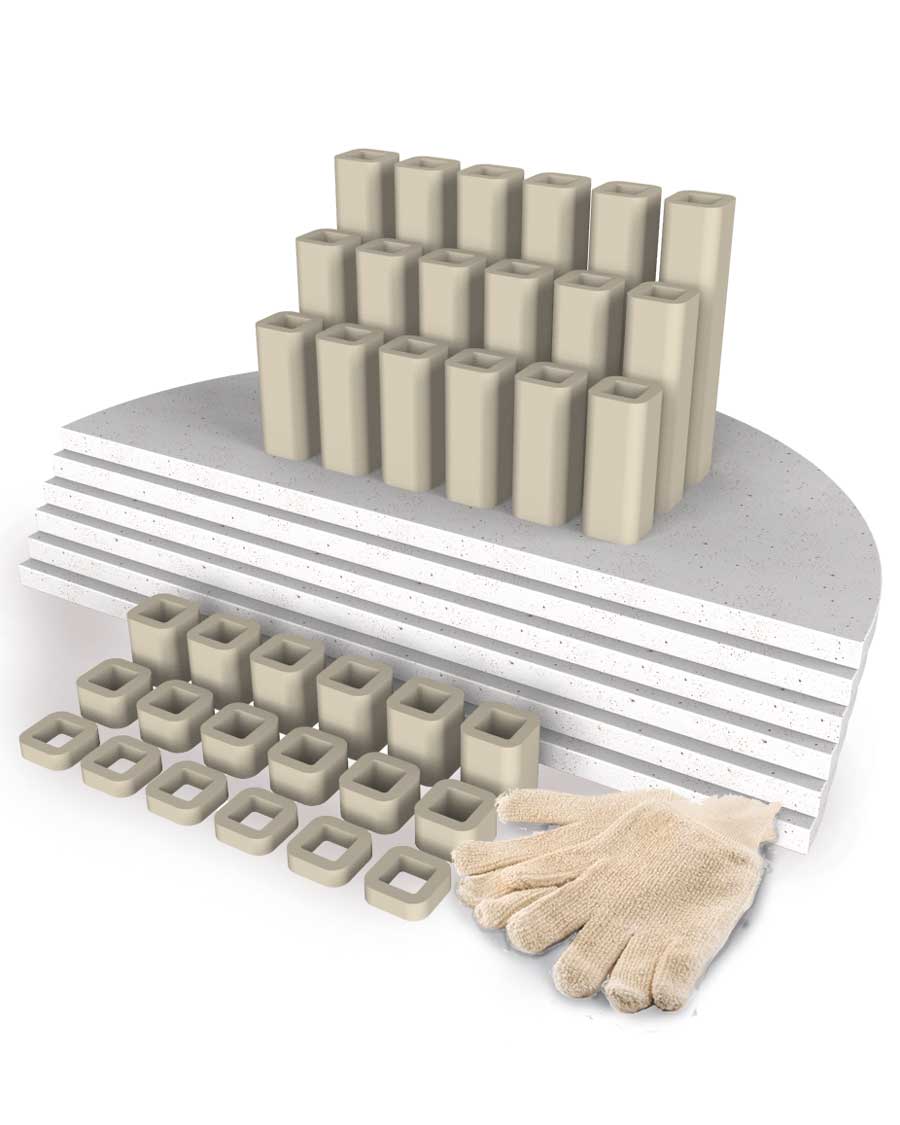

Add Furniture Kit

Shelves: Six 25-1/2″ Half Round Shelves (3/4″ thick)
Furniture Posts: Six each of 1/2″, 1″, 2″, 4″, 6″, & 8″ high 1-1/2″ Square Ceramic Posts
Furniture Accessories: One Pair Heat Resistant Gloves

Add Vent-Sure

The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln. It ensures that your kiln gets the longest possible life from your elements and electrical components. An 8-foot flexible duct is included.

Add Vent-Control for Vent-Sure

The Vent Control allows you to automatically control the operation of the Vent-Sure kiln vent with one of the outputs from the DynaTrol or Genesis.

Add DynaTrol Keypad Control

This control has the same wiring and same mechanical footprint as the Genesis full-sized zone control. You can order this in place of the Genesis as a no-charge option. Doing so adds nothing to the lead time.

Add Rolling Kiln Stand

Fully supports the entire kiln bottom (not just the edges). Corrosion-resistant, heavy-gauge aluminized steel lasts longer. Easy vent installation with built-in vent box mounting studs (compatible with Vent-Sure system; no extension duct required). Guideposts to keep kiln centered – each size stand-top fitted for matching kiln models, legs are universal.

Lift Gate Service to lower the kiln from the truck to the ground.

Description

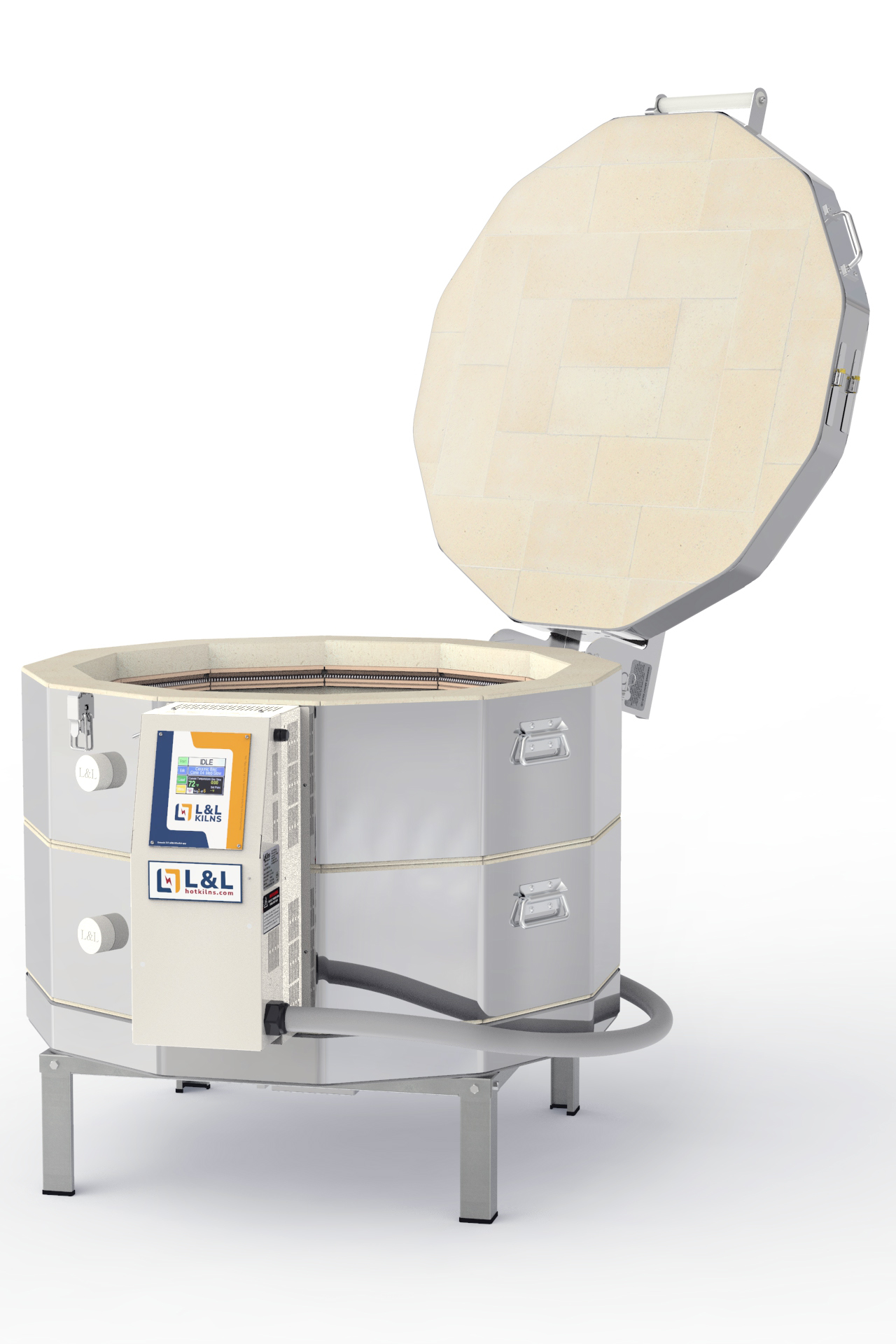

Model e28S-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen control mounted in an easy-open, cool-firing, piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a strong solid-top stand, an easy-lift spring hinge, and solid peephole plugs. 28″ diameter by 18″ high (6.8 cubic feet). 3″ K23 brick. NEMA 6-50 single phase or 15-50 three-phase 6-foot power cord included. There are two thermocouples. No charge for 3-phase versions. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.
